Training Use Ventilator

The TUV-SK1 provides volume-controlled mechanical ventilation and is intended to be used for training in traditional healthcare facilities and spaces converted for the care of large numbers of patients in emergency scenarios.
Parameter ranges of the TUV-SK1 include:

• The Fractional Concentration of Inspirational Oxygen can be set in 5% increments from 21-100%.
• Tidal volume is adjustable in 25 ml/ breath increments between 200-800 ml/breath
• Respiratory rate is adjustable in 1 breath/minute increments within a range of 10-30 breaths/minute.
• Inspiratory time can be set between 0.5 to 3.0s.

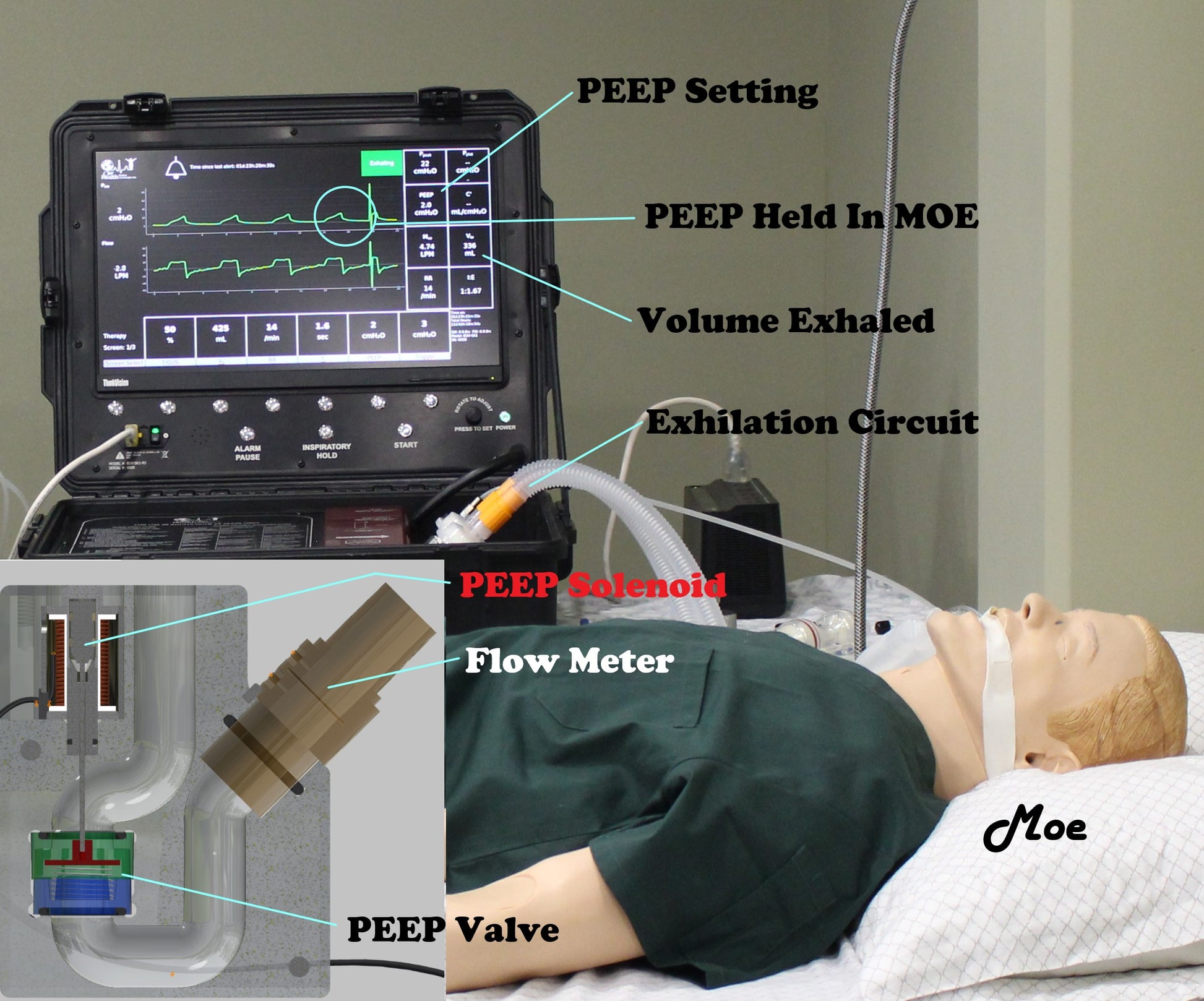

• The Positive End Expiratory Pressure (PEEP) is adjustable in 1 cmH20 increments between 0 to 40 cmH20.
• Trigger pressure drop can be set in 1 cmH20 increments from 1 to 5 cmH20.
• The maximum measured airway pressure is 80 cmH20.

The TUV-SK1 Display Screen displays:
• Peak Pressure,
• PEEP Pressure,
• Respiratory Rate,
• Plateau Pressure,
• Inspiration to Expiration Ratio,
• Actual Respiratory Rate (RR),
• Flow Rate,
• Tidal Volume,
• Maximum Measured Airway Pressure,
• Compliance.

TUV-SK1 notifies operators of an alarm condition by sound and an alarm symbol displayed on the monitor, as well as different colours for each alarm priority level (low, medium, high). Alarms will be triggered if:
• Gas supply failure: Alarm for inadequate oxygen and inadequate medical air supply,
• Electrical supply failure: The UPS will alarm if it loses connection to A/C power; it will automatically switch to its battery mode,
• Ventilator switched off when in mandatory ventilation mode,
• High Pressure: inspiratory airway pressure exceeded,
• Low Pressure: inspiratory pressure or PEEP not achieved,

As the EUV certification has been dropped following the conclusion of the pandemic, these ventilators are now available as Training Use Ventilators for those looking for an easily transportable training tool. Contact us today for a quote.
